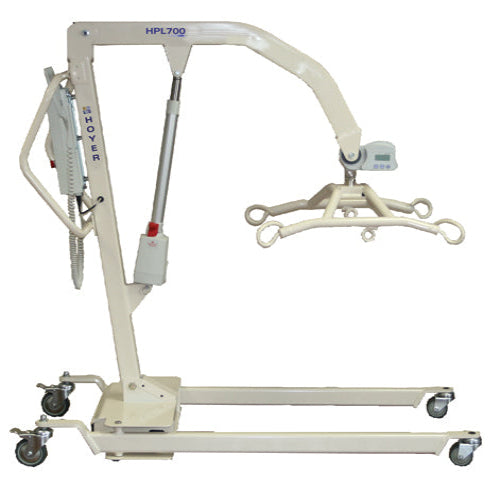

Hoyer Power Patient Lifter with Powered Base
HPL700
Regular price$13,254.82
/
- In stock, ready to ship
- Inventory on the way
Key Features
- Uniquely designed electronic lift for 700 lbs capacity
- Oversized push handle for caregiver comfort
- Oversized loop-style cradle
- One-piece base
- Low-friction casters
Battery & Charger Specifications
- Battery: 24V DC rechargeable sealed lead acid type
- Battery capacity: 3.2 Ampere-hours (Ah)
- Charger rated input: 100–240V AC, 50/60Hz
- Charger rated output: 27.4V DC @ 0.8A
Electrical Shock Protection
- Charger: Class II
- Lift: Internal power source
- Degree of protection:
- Charger: Type B
- Lift: Type B
Weight Capacity
- Safe Working Load: 700 lbs (227 kg)
Dimensions
-
Overall Length:
- Maximum: 56 in (1423 mm)
- Minimum: 55 in (1397 mm)
-
Overall Height:
- Maximum: 81 in (2058 mm)
- Minimum: 57.75 in (1467 mm)
-
Reach:
- At Maximum Height: 28.5 in (724 mm)
- At Minimum Height: 27 in (686 mm)
- Maximum Reach: 37.75 in (959 mm)
- Turning Radius: 62 in (1575 mm)
-
Legs - External Width:
- Open: 46.25 in (1175 mm)
- Closed: 27.5 in (699 mm)
-
Legs - Internal Width:
- Open: 42.25 in (1073 mm)
- Closed: 23.5 in (597 mm)
- Overall Height of Legs: 4.5 in (114 mm)
- Ground Clearance: 0.625 in (16 mm)
Casters
- Front Twin Casters: 3 in (76 mm)
- Rear Braked Casters: 4 in (102 mm)
Weight
- Mast, Base, Boom Assembly, Cradle: 143.4 lbs (65 kg)
- Power Pack: 6.6 lbs (3 kg)
- Total: 150 lbs (68 kg)
- Base Assembly: 83 lbs (38 kg)
- Mast and Boom (excluding battery): 40.4 lbs (18 kg)
- 6-Point Spreader Bar: 20 lbs (9 kg)
