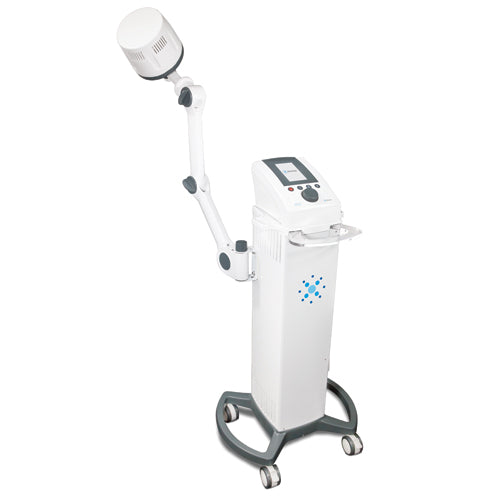

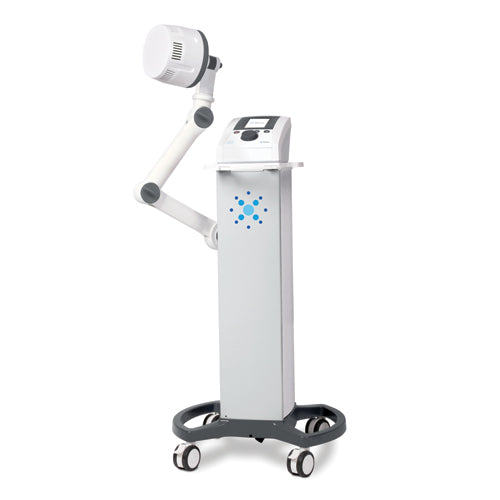

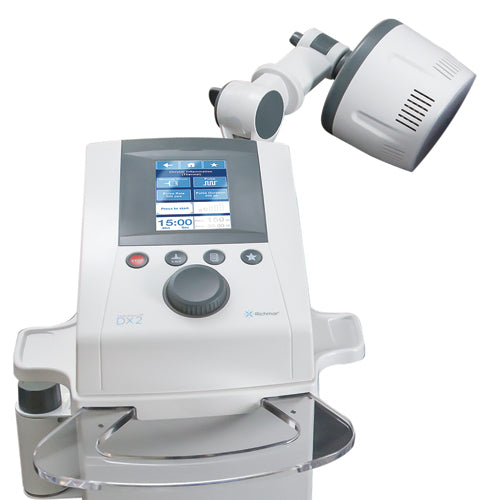

TheraTouch DX2 Shortwave Diathermy Machine

Richmar TheraTouch DX2 Shortwave Diathermy

Overview

• Shortwave Diathermy with Scientific Dosage Control (SDC)
• Offers advancements in safety, convenience, and efficiency
• Delivers continuous and pulsed mode for deep tissue heating
• Used for treating: Muscle spasms, Joint contracture & General pain relief

Scientific Dosage Control (SDC) Levels

• DOSE I – Subthermal
• DOSE II – Mild Heat
• DOSE III – Low Heat
• DOSE III SDC M – Moderate Heat
• DOSE III SDC H – High Heat
• DOSE IV – Vigorous

Technology Features:

• H.E.A.T. (High Efficiency Auto-Tuning): Continuously measures and adjusts for patient impedance to ensure maximum energy transmission—enabling faster heating and shorter treatment times.
• Microcirculation Indication:
  • Exclusive DX2 Quick Link parameter
  • Enhances tissue healing based on subthermal pulsed diathermy studies

Key Features:

• 100W max power in continuous mode;
• 200W peak power in pulsed mode
• Dual treatment indicators on both the unit and the monode drum
• Anatomical treatment guide
• Save up to 99 user-defined favorites
• Robust 360-degree pivoting arm to withstand the everyday rigors of clinical use     Programmed with evidence based protocols and specific patient indications

Specification:

• Continuous Mode Output: 100W Average Power at 50Ω
• Pulsed Mode Output: 200W Peak Power at 50Ω
• Power: 100-240 V ~, 50/60 Hz
• Output Frequency: 27.12 MHz ± 0.6%
• Power Increment Settings: 0.5 W
• Pulse Width: 20 - 400 µsec in 20 µsec increments
• Pulse Frequencies: 10 - 800 Hz in 10 Hz increments
• Treatment Duration: 1 - 30 min in 1 min increments
• Electrical Class: CLASS I
• Electrical Type: TYPE BF
• Regulatory Risk Class: Class IIb according to MDD 93/42/EEC
